ETC Sensor Dimming System
Used, but solid
1 available, $8,500

     This ETC Sensor Install Rack is a SR 48 and comes fully loaded with 48 D20 modules for 96 dimmers.  It has the classic CEM (full keypad) control and also comes with 2 additional D20 modules (more are available if desired).
    The factory ID tag fell off (as they often do) so we can‘t confirm the build date.  Almost all of the dimmer modules have February 28, 1994 build dates on them and the CEM has a build date of June 3, 1994 so we believe this was installed in June of 1994, though it could have sat for some time as we‘ve seen June 1994 CEM‘s in newer units.  Four of the dimmer modules have 1996 build dates.  During testing we found one bad module and are furnishing a 2003 module in its place.  This also comes with two additional 2003 modules as spares.
    We have cleaned and tested this rack and it responds on DMX inputs A and B as well as accepting keypad commands.  The only ’issue‘ with this rack is that it was located within 25 miles of the ocean and shows some signs of exposure to salt air.  Some modules have a little bit of oxidation on the cooling fins.  The right side of the rack has surface rust, especially at the front bottom corner. Easily painted over if it bothers you.  Other than that this rack is in great shape.  There are no wiring holes in the sides or in the bottom.  It has five holes in the top, looks like 3 holes are for 1 1/2" conduit and the other two are for 3/4" conduit.
     Please click on any of the small pics below to see it full size.

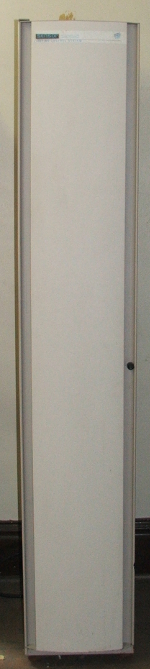

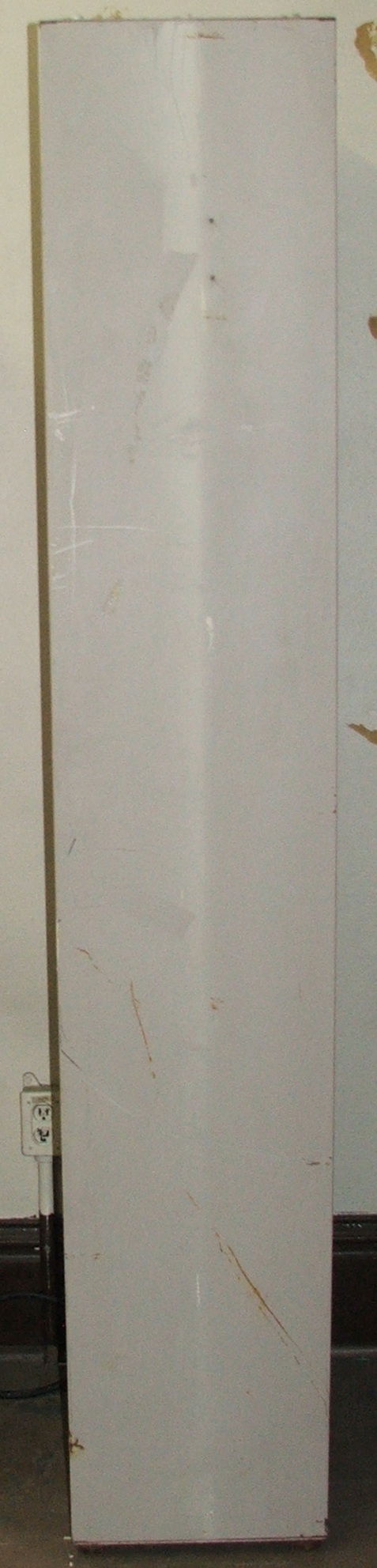

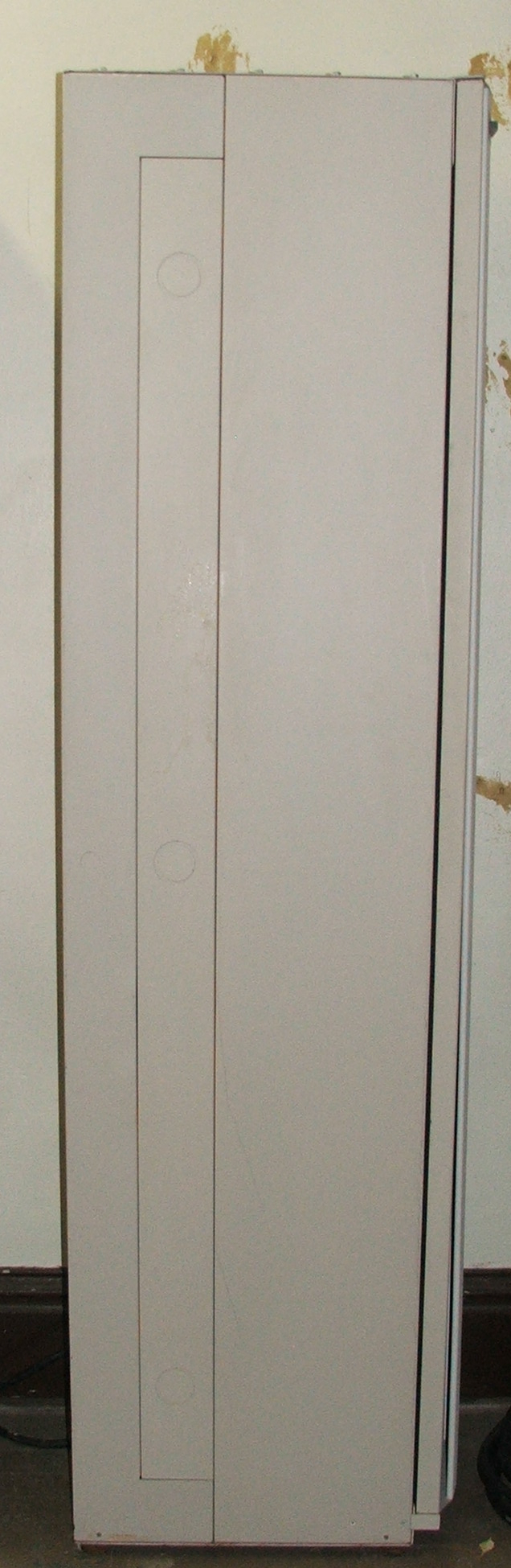

front view	left side view	back view	right side
CEM area	CEM	name plate	door top
phase connector	insdie bottom	right side	corner

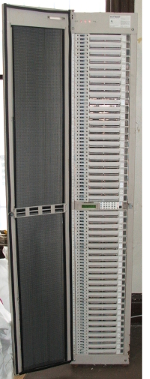

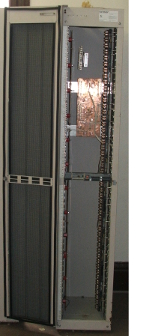

inside top	door open	door open empty	CEM backplane
